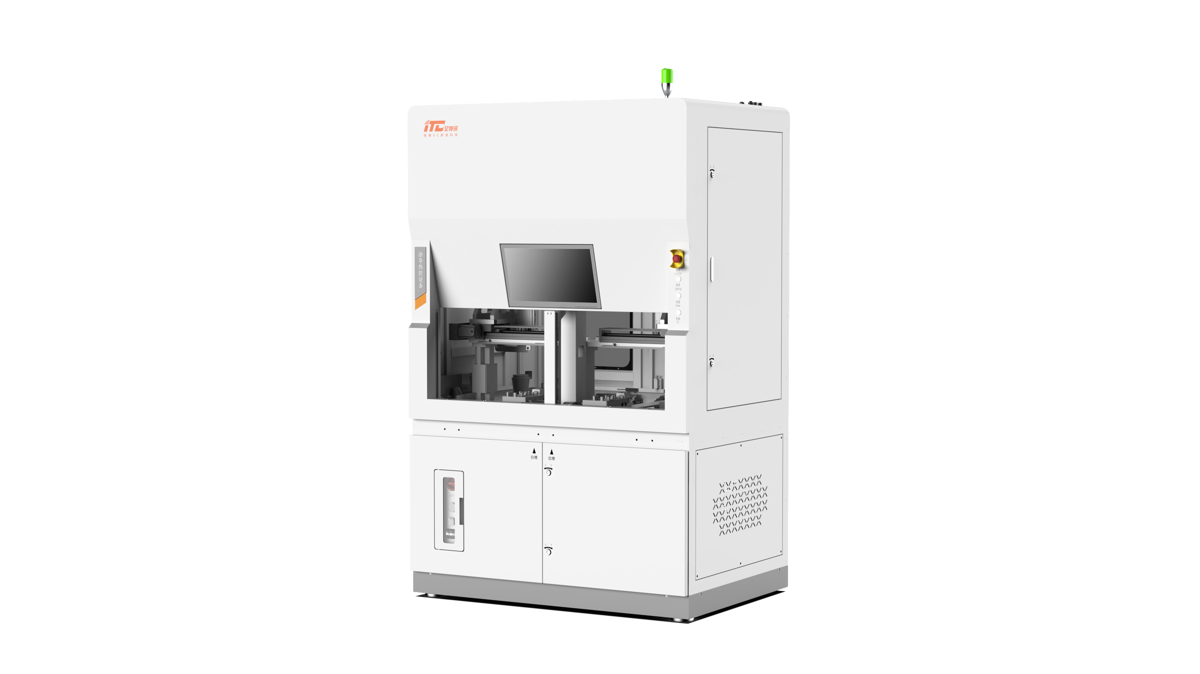

ITC-AE598-A2 Servo Riveting Device
Product Overview
Hinges, rotating shafts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 220V AC±10%, 50/60Hz |
| Air Supply Pressure | 0.5~0.7MPa |
| Ambient Requirement | Temperature:25℃~45℃, Humidity:22%~75% |
| Equipment Appearance | Industrial design appearance (refer to color‑chart) |
| Spin‑riveting Yield | ＞99.9% |
| Press‑fit Position Accuracy | X/Y/Z‑axis repeat positioning accuracy ±0.05mm, CPK≥1.67 |
| Control Mode | Industrial PC + PLC |
| No‑load Speed | ≥100mm/s |
| Press‑fit Speed | 5~50mm/s |
| Press‑fit Force | 0.02‑10kN |
| Force Accuracy | ≤±1% FS (Full Scale) |
| Force Adjustment | Adjustable press‑fit speed and force |
| Equipment Failure Rate | MTBF (Mean Time Between Failures) ≥200h MTTR (Mean Time To Repair) ≤15min |
