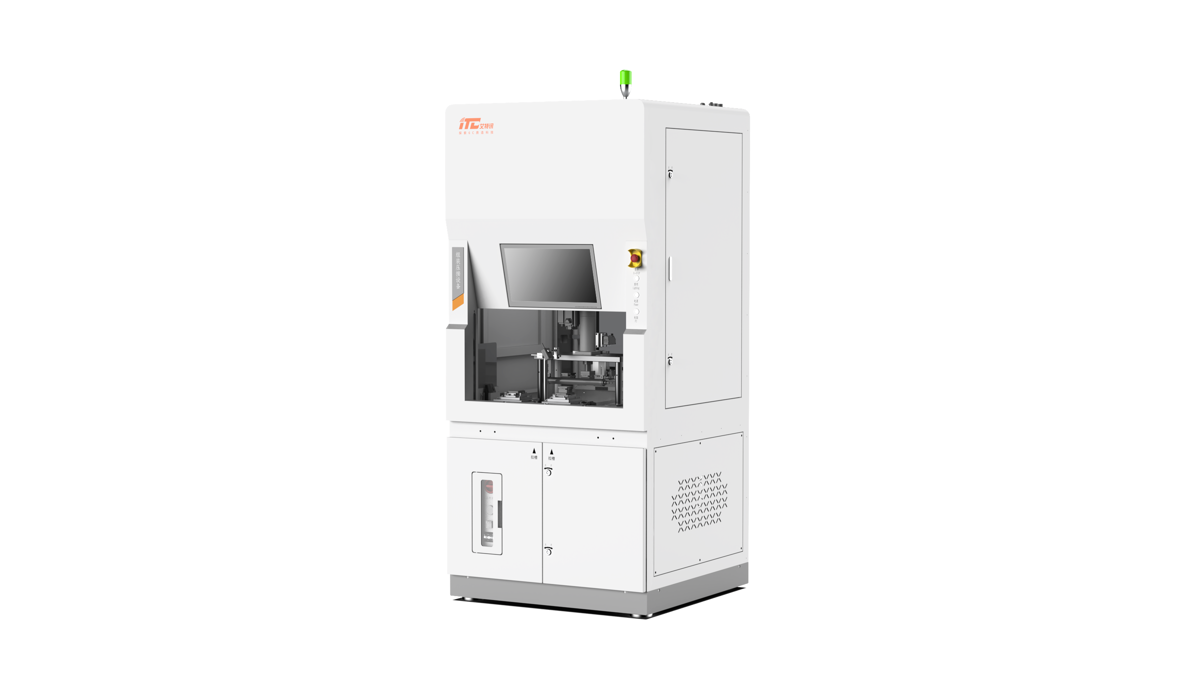

ITC-AE643-A1 PCBA Pin Press-Fit Device
Product Overview
mmWave radar, digital key, CPU.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 220V AC ±10%, 50/60Hz |
| Air Supply Pressure | 0.5~0.7MPa |
| Environmental Requirements | Temperature: 25℃~45℃, Humidity: 22%~75% |
| Equipment Appearance | Industrial‑grade design (refer to color swatch) |
| Press‑fit Yield | >99.9% |
| Press‑fit Position Accuracy | X/Y/Z‑axis repeat positioning accuracy ±0.05mm, CPK≥1.67 |
| Control Mode | Industrial PC + PLC |
| No‑load Speed | ≥100mm/s |
| Press‑fit Speed | 5~50mm/s |
| Press‑fit Force | 0.02‑10kN |
| Force Accuracy | ≤±1% FS (Full Scale) |
| Force Adjustment | Adjustable press‑fit speed and force |
| Equipment Reliability | MTBF ≥200h MTTR ≤15min |
