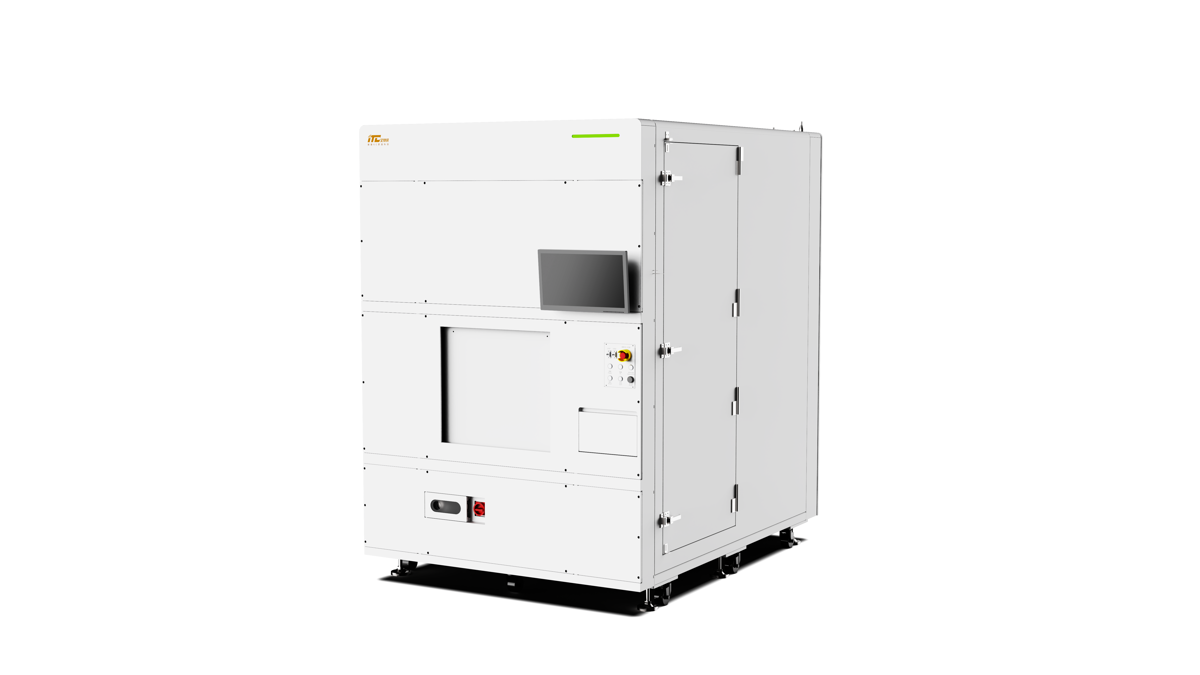

ITC-AT334-D2 Noise Tester
ITC-AT334 is a noise testing device designed for automotive electronics.
Product Overview
ITC-AT334 is a noise testing device designed for automotive electronics.
Technical Specifications
| Parameter | Value |
|---|---|
| Supported DUT | HUD, on‑board wireless charger, ceiling‑mounted screen, central control screen |
| Supported DUT Dimension | Max. L500 × W400 × H250 mm |
| Overall Dimensions | Depth × W × H = 2350 mm × 1600 mm × 2300 mm |
| Color | Gray‑white |
| Sound Insulation Performance | Background noise <20 dB @ ambient noise ＜85 dB (industry‑leading) |
| Material | Sheet metal + aluminum alloy + sound insulation material + sound‑absorbing material |
| Operation Height | 900±50 mm |
| Operation Mode | Drawer‑type, manual loading/unloading or robotic arm Up‑Down loading |
| CT Time | 30 s ~ 90 s (depends on product test conditions) |
| Test Functions | Sound Pressure Level (SPL), Tonality, Sharpness, Loudness, Loudness Level, Tremolo Analysis, Flatness, Roughness, Acoustic AI |
