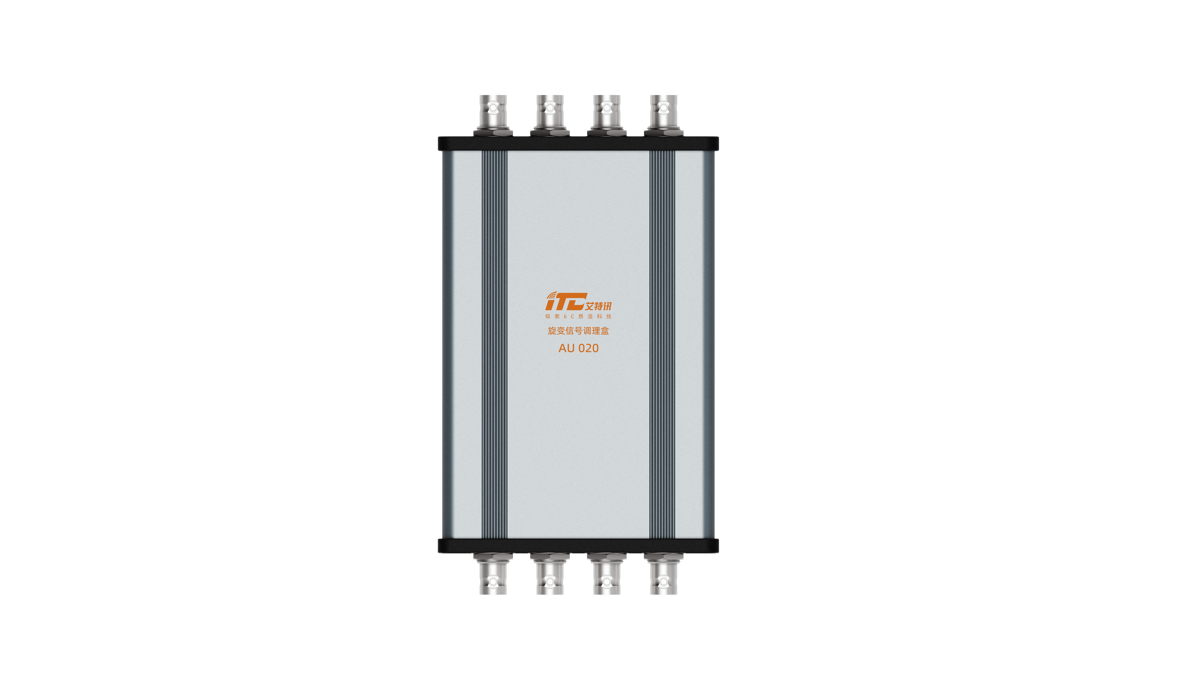

ITC-AU020 Resolver Signal Conditioner
ITC-AU020 resolver signal conditioner performs impedance matching and signal filtering for motor sine/cosine output signals.
Product Overview
Resolver signal conditioner with BNC input/output connectors. Compact design for flexible channel configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ITC‑AU020 Resolver Signal Conditioning Box |
| Number of Channels | 4 |
| Accuracy Error | ≤1% |
| Dimensions (mm) | 146.5 × 99 × 36 |
| Interface Type | BNC |
| Operating Temperature | ‑20℃ ~ 50℃ |
