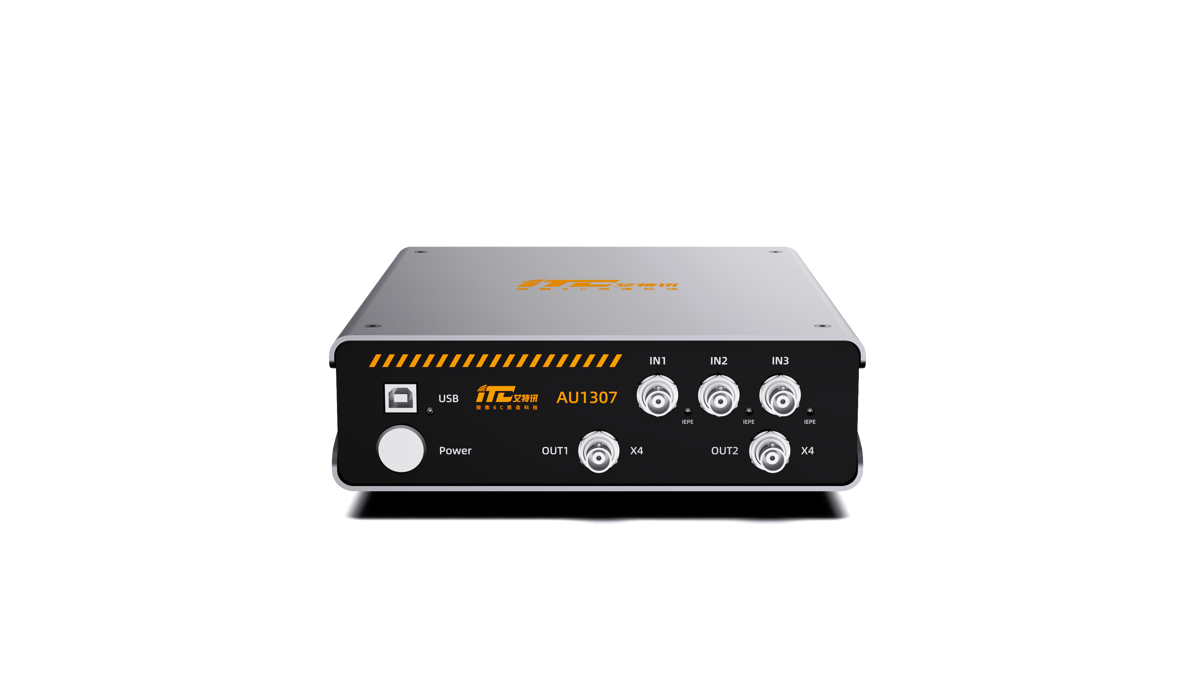

ITC-AU1307 High-Integration Sound Card
ITC-AU1307 is an audio analysis instrument designed for acoustic testing. It integrates a sound card, constant current source and power amplifier.
Product Overview
ITC-AU1307 is an audio analysis instrument designed for acoustic testing. It integrates a sound card, constant current source and power amplifier.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ITC‑AU1307 Acquisition Card |
| Analog Input Channels | 3 channels |
| Analog Output Channels | 2 channels |
| IEPE Channels | 3 channels (built‑in on acquisition side) |
| IEPE Supply Voltage | 24 V |
| Power Amplifier Channels | 2 channels |
| Power Amplifier Output Power | 8 W per channel |
| Bus Interface | USB |
| Dimensions (mm) | W240 × L232.5 × H80 mm |
| Interface Type | BNC |
| Extreme Operating Temperature | ‑20℃ ~ 50℃ |
| Guaranteed‑specification Temperature Range | 15℃ ~ 30℃ |
