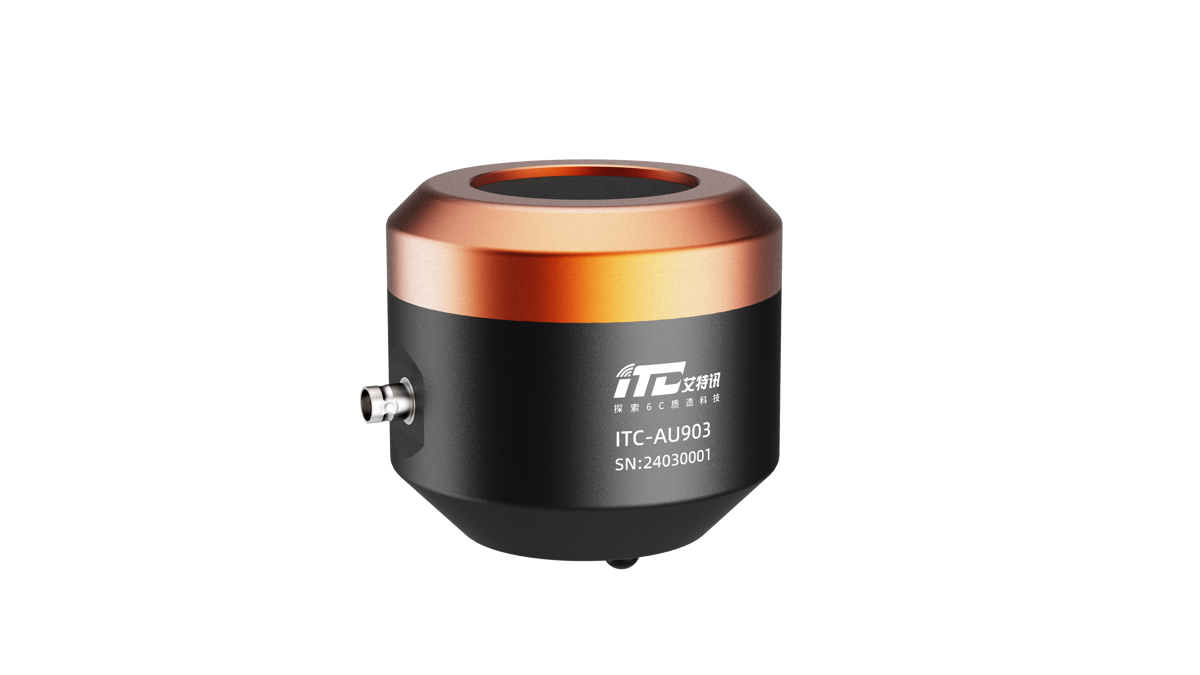

ITC-AU903 Artificial Mouth
ITC-AU903 artificial mouth simulates the sound field near the human mouth.
Product Overview
ITC-AU903 artificial mouth simulates the sound field near the human mouth.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ITC‑AU903 Artificial Mouth |
| Max. Continuous Output SPL | 200Hz ~ 10kHz: 110 dB (at 25 mm MRP) 100Hz ~ 10kHz: 100 dB (at 25 mm MRP) |
| Distortion | 200Hz ~ 10kHz: <1.5%, typical <1% (94 dB SPL, at 25 mm MRP) |
| Frequency Response | Compensated output SPL: 94 dB ±1 dB (100Hz ~10kHz) |
| Impedance | 4 Ω |
| Continuous Maximum Power | 10 W |
| Peak Maximum Power | 50 W (1 s) |
| Sound‑emitting Aperture | Ø20 mm |
| Lip Ring | Outer Diameter: Ø51 mm, Height: 25 mm |
| Diameter | Ø100 mm |
| Height | 88 mm |
| Net Weight | 1.3 kg |
| Connector | BNC |
