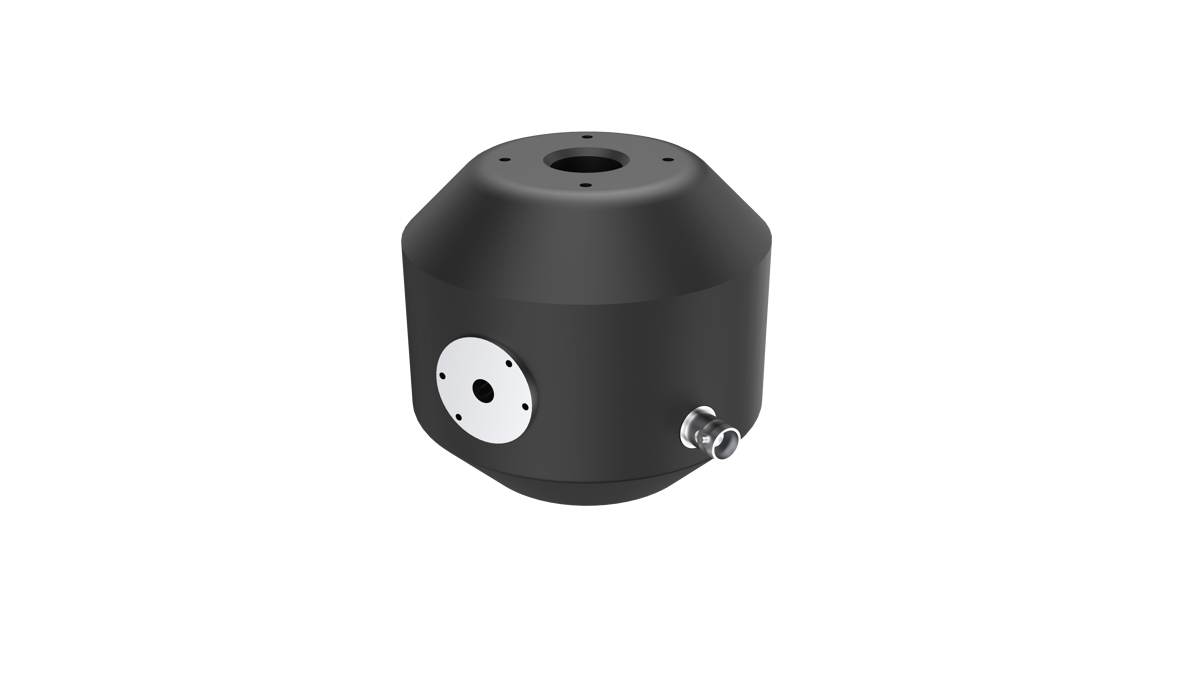

ITC-AU908 Artificial Mouth
ITC-AU908 artificial mouth accurately simulates the sound field near the human mouth. Features high sensitivity and wide-band transduction efficiency, delivering 94dB SPL at 10cm working distance.
Product Overview
ITC-AU908 artificial mouth accurately simulates the sound field near the human mouth. Features high sensitivity and wide-band transduction efficiency, delivering 94dB SPL at 10cm working distance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ITC‑AU908 Artificial Mouth |
| Distortion | 200Hz – 10kHz: Factory standard <1% (94 dB SPL, at 50 mm MRP) |
| Frequency Response | Compensated output SPL: 94 dB ±0.1 dB (100Hz‑10kHz) |
| Impedance | 4 Ω |
| Continuous Maximum Power | 10 W |
| Sound‑emitting Aperture | Ø20 mm |
| Lip Ring | Outer Diameter: Ø51 mm, Height: 25 mm |
| Diameter | Ø102 mm |
| Height | 105 mm |
| Net Weight | 1160 g |
| Connector | BNC |
