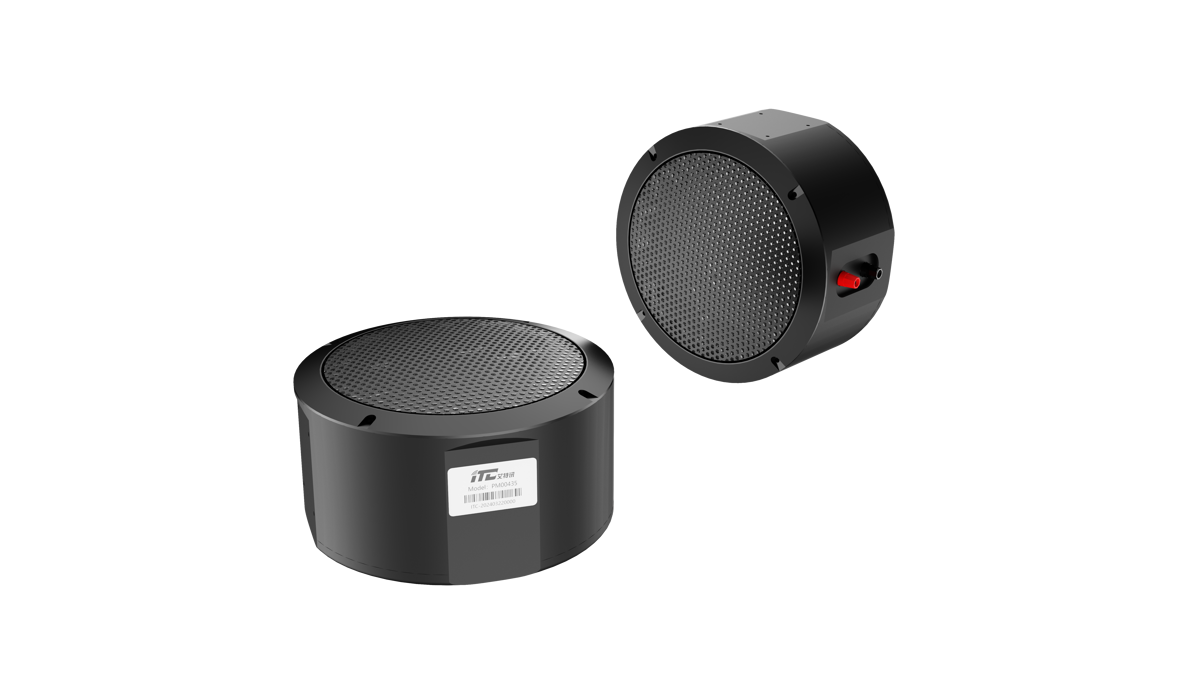

ITC-AU952 Artificial Mouth
ITC-AU952 accurately simulates the sound field near the human mouth. Suitable for testing telephone transmitters and microphones for frequency response, distortion and other acoustic parameters.
Product Overview
ITC-AU952 accurately simulates the sound field near the human mouth. Suitable for testing telephone transmitters and microphones for frequency response, distortion and other acoustic parameters.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ITC‑AU952 |
| Minimum Continuous Output SPL | 40Hz ~ 20kHz: 100 dB SPL (at 100 mm MRP) |
| Distortion | 100Hz ~ 20kHz: <1%, typical <0.5% (94 dB SPL, at 100 mm MRP) |
| Impedance | 8 Ω |
| Continuous Maximum Power | 38 W |
| Peak Maximum Power | 100 W (1 s) |
| Dimensions (mm) | 300 mm × 115 mm × 280 mm |
