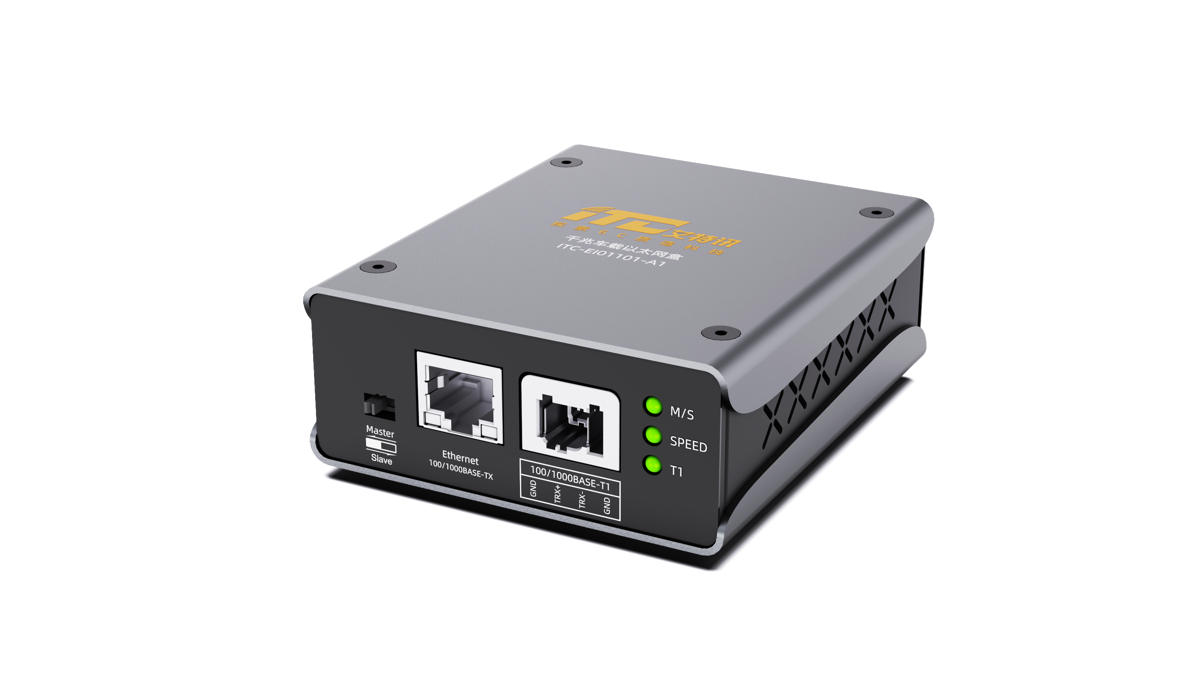

ITC-EI01101-A1 Gigabit Automotive Ethernet Converter
Product Overview
Gigabit automotive Ethernet converter for in-vehicle network applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type & Rate | 1. 100M/1000M full‑duplex, compliant with IEEE 802.3ab (1000BASE‑T), IEEE 802.3u (100BASE‑TX), IEEE 802.3bp (1000BASE‑T1). 2. Supports jumbo frame pass‑through from L64 to 9000 bytes; transmission latency ≤1µs, wire‑speed forwarding without packet loss, plug‑and‑play supported. |
| Input Voltage | Dual power‑supply mode: DC 9~36V; USB Type‑C auxiliary power 4.75~5.25V (typical 5.0V, compatible with USB 2.0 power supply). |
| Mechanical Appearance | Die‑cast aluminum alloy with anodized surface treatment. Dimension (L×W×H): 100×80×50mm. |
| Environmental Requirements | Operating Temperature: -40~+85℃. Storage Temperature: -55~+125℃. Operating Humidity: 5%~95% (non‑condensing). |
| Compliance Standards | Complies with GB 4943.1‑2011, FCC Part 15 and CE requirements. (Certifications in progress) |
