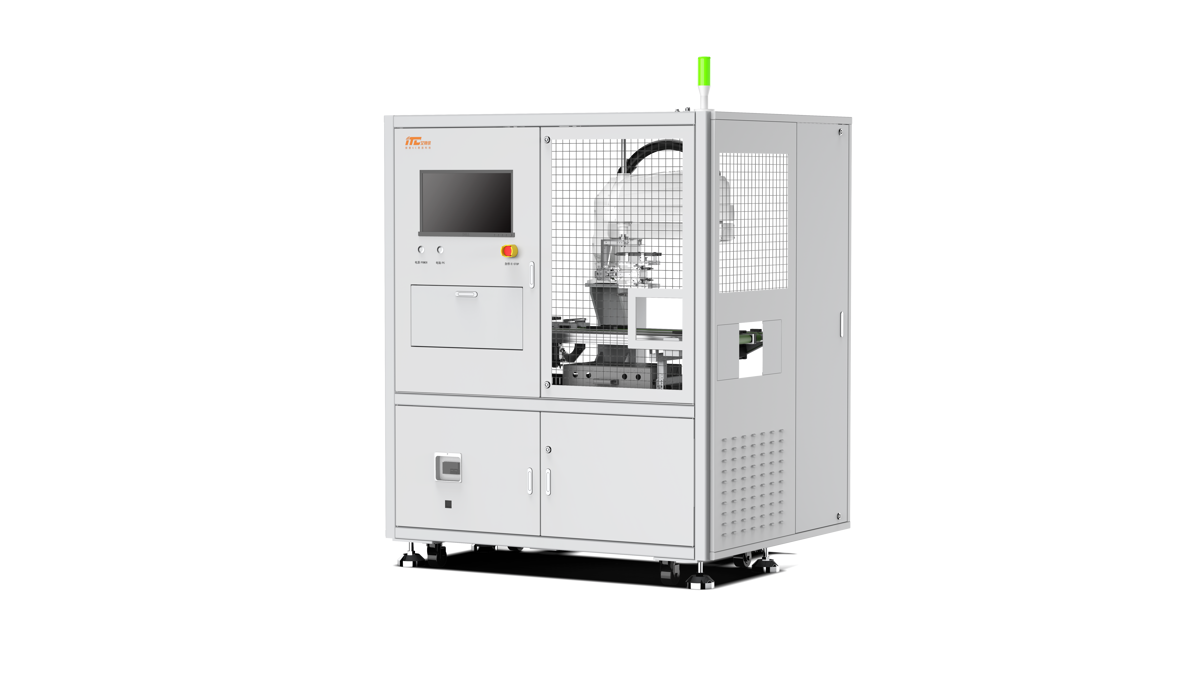

ITC-RS525-A1 Auto Load/Unload Station (1-to-2)
ITC-RS525 is designed for 3C consumer electronics product testing with automatic loading/unloading, enabling fully automated unmanned testing.
Product Overview
ITC-RS525 is designed for 3C consumer electronics product testing with automatic loading/unloading, enabling fully automated unmanned testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Load/Unload Device: ITC-RS525 |
| Dimensions (mm) | 1450 (L) × 550 (W) × 1800 (H) / 1940 (L) × 550 (W) × 1800 (H) |
| Robot Specs | 4‑Axis Robot, reach 700 mm |
| Operating Voltage | AC 220 V ±10 %, 50 Hz |
| Air Supply | 0.4 ~ 0.7 MPa |
| Compatible Product Size | Compatible with 5‑7 inch products |
| CT | 9.5 s |
| Compatible Test Units | Flexibly configurable for 1‑to‑1, 1‑to‑2, 1‑to‑3 |
| Conveyor Components | 2 conveyor lines + Unpowered Roller Track (supporting extended belt length) |
| Lift & Position Unit | Simple ring design for easy adjustment; no risk of product damage during lifting, No adjustment required for minor changeovers |
| Changeover Time | Lift adjustment: 5 min per unit |
| Software System | Intelligent Motion Control Software V2.0 |
| Application | Fully‑automated load/unload for smartphones, tablets and wearable devices |
