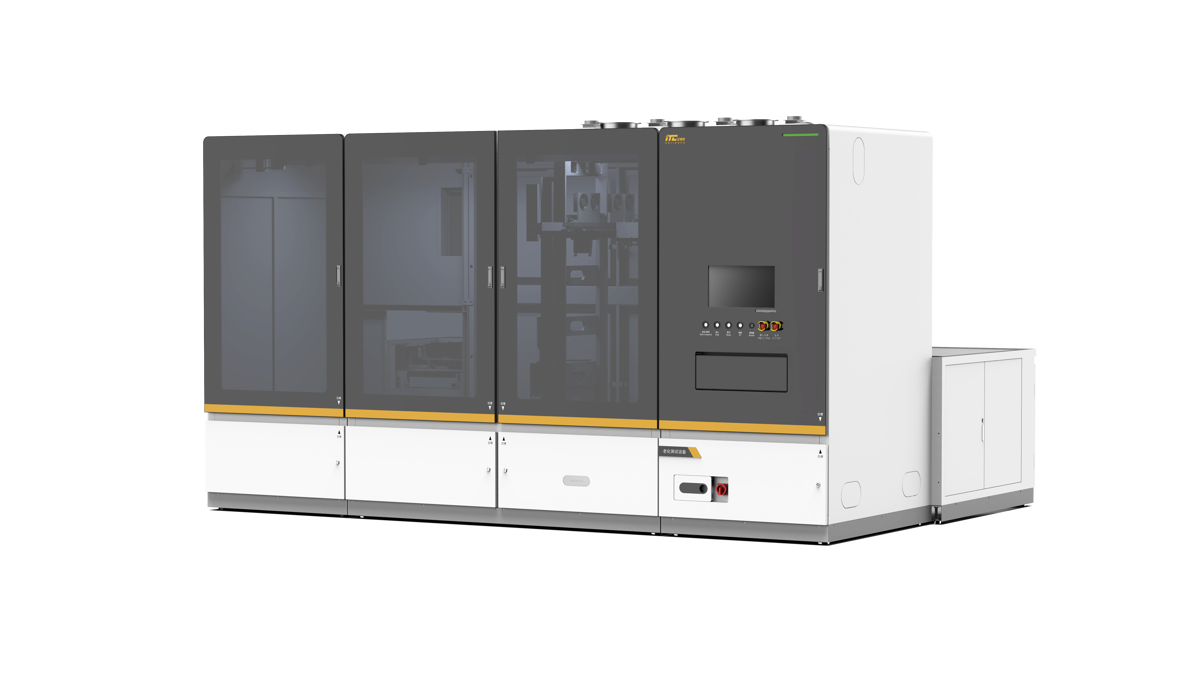

ITC-ST338-A1 Aging Test Device
Product Overview
Automotive domain controllers, HUD, wireless chargers, vehicle displays. Temperature simulation. Electrical: power, voltage/current monitoring. Communication: CAN/CANFD, LIN.
Technical Specifications
| Parameter | Value |
|---|---|
| DUT Dimension | 250*350mm (Customizable) |
| Overall Dimension | D*W*H=2000mm*6000mm*2200mm; (Depends on product quantity) |
| Color | Off‑white, Black |
| Material | Sheet metal |
| Operation Height | 950mm |
| Operation Mode | Warehouse‑type, robotic arm for upstream‑downstream material handling |
| Equipment Specifications | Aging temperature: Ambient ~85℃. Temperature accuracy: ±2℃. Aging time: Configurable. Product capacity: Customizable. |
