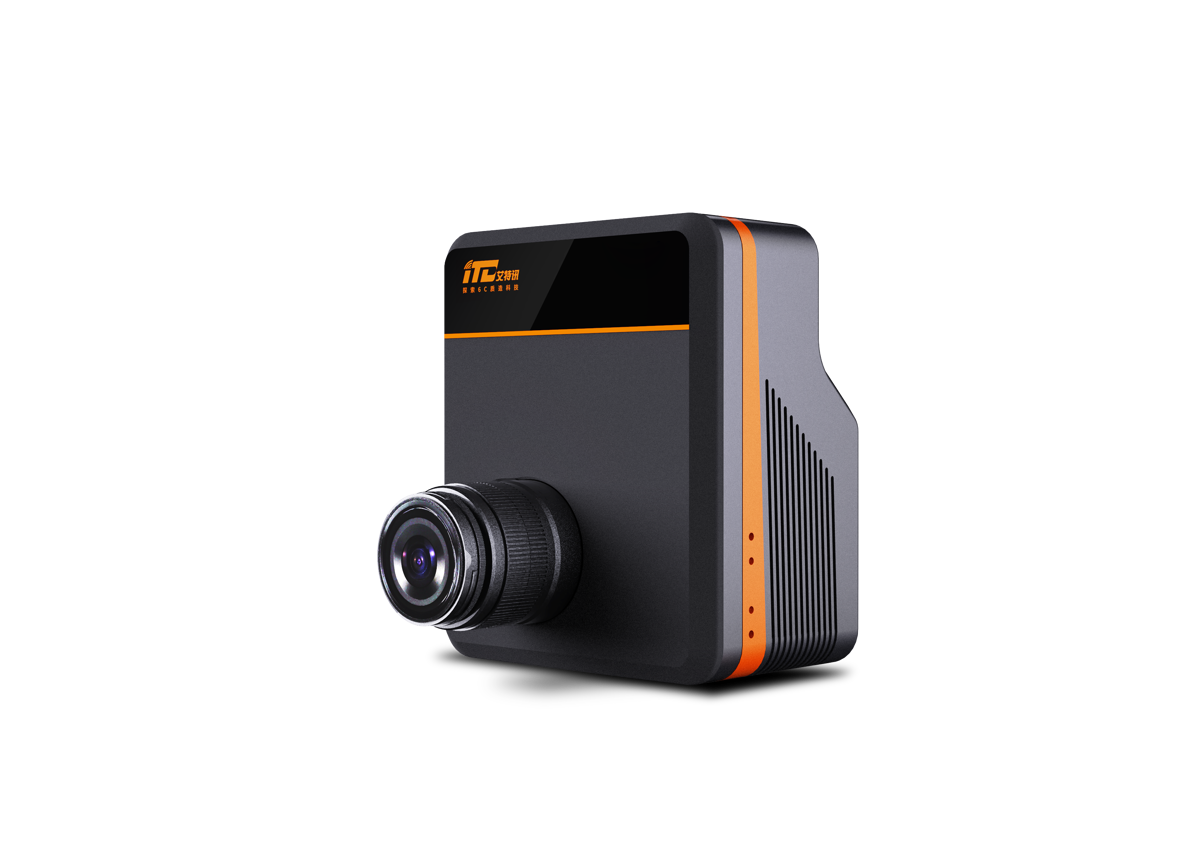

ITC-VT1026 Colorimeter
ITC-VT1026 is a high-precision filter-wheel imaging colorimeter easily integrated into production lines and test benches for precise color and optical parameter measurement.
Product Overview
ITC-VT1026 is a high-precision filter-wheel imaging colorimeter easily integrated into production lines and test benches for precise color and optical parameter measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ITC‑VT1026 |
| Resolution | 26 Megapixel (6280*4210) |
| Exposure Time | 0.1ms‑10s (Minimum measurement time configurable by user) |
| Luminance Range | 0.1‑10,000,000cd/m² (ND filter required under high‑brightness conditions) |
| Luminance Accuracy | Illuminance ±3%, Luminance(Y) ±3% |
| Chromaticity Accuracy | Chromaticity Coordinate (x,y) ±0.003 |
| Short‑term Repeatability | Luminance(Y): ±0.05% Chromaticity Coordinate (x,y): ±0.0001 |
