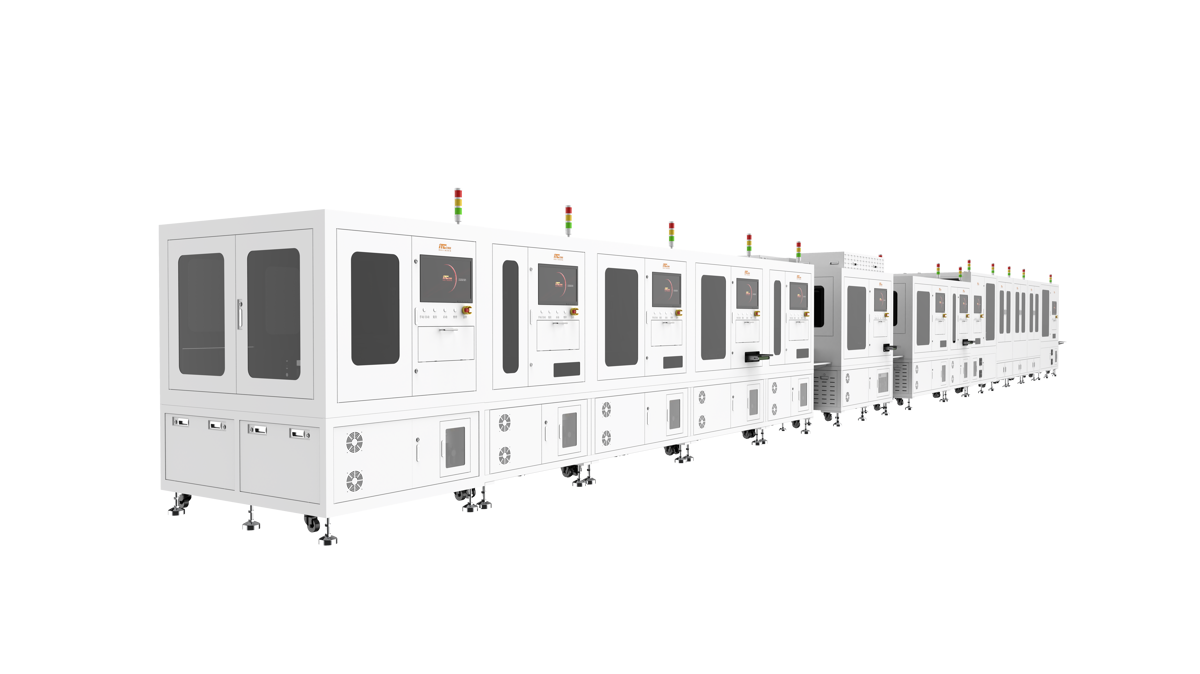

ITC-AE530 Phone Screen Pre-Assembly Line

ITC-AE530 Phone Screen Pre-Assembly Line

The ITC-AE530 line is designed for high-precision automated assembly of electronic product screens and frame components with dual-track synchronous operation.

Contact Us Back to Home

Product Overview

The ITC-AE530 line is designed for high-precision automated assembly of electronic product screens and frame components with dual-track synchronous operation.

Technical Specifications

Parameter Value
UPH Standard: 600, Max.: 700 UPH
CT 5 s
Main Processes 1. Automatic Mid‑frame Feeding: Multi‑layer stacked trays enable non‑stop loading/unloading. After automatic barcode scanning, the vision‑guided robot performs automatic picking and fast transfer.
2. Mid‑frame Plasma Cleaning: After barcode scanning, high‑temperature plasma cleaning is applied to the dispensing path to improve adhesive bonding strength.
3. Automatic Dispensing: Barcode scanning controls adhesive pot‑life. Dual tracks operate simultaneously. Vision‑guided edge‑locating enables high‑speed, high‑precision dispensing.
4. Bead Inspection: After barcode scanning, dual‑track synchronous 3D bead inspection automatically rejects NG parts. Detects bead width, bead height, broken bead, adhesive overflow and residual adhesive.
5. Screen Bonding: Barcode scanning manages adhesive pot‑life. Dual‑track four‑station concurrent operation. Vision guidance achieves precise piercing & centering bonding with automatic height measurement.
6. Tooling Changeover: Vision‑guided mid‑frame picking. Dual‑track concurrent operation transfers mid‑frames from base molds to dedicated fixtures.
7. Tooling Closing: Upper‑lower mold clamping & pre‑compression for mid‑frames. Dual‑track operation with real‑time pressure monitoring.
8. Automatic Pressure Holding: Clamped pressure‑holding cassettes are barcode‑scanned for data logging; dual‑track concurrent operation.
9. Automatic Aging: Database‑driven efficient scheduling for cassette storage; automatic aging for 2 hours.
10. Automatic Unloading & Disassembly: Pressure‑holding cassettes are ejected, scanned and opened automatically. Mid‑frames are unloaded, and empty cassettes recirculate.
